Kafka

Install Kafka Broker

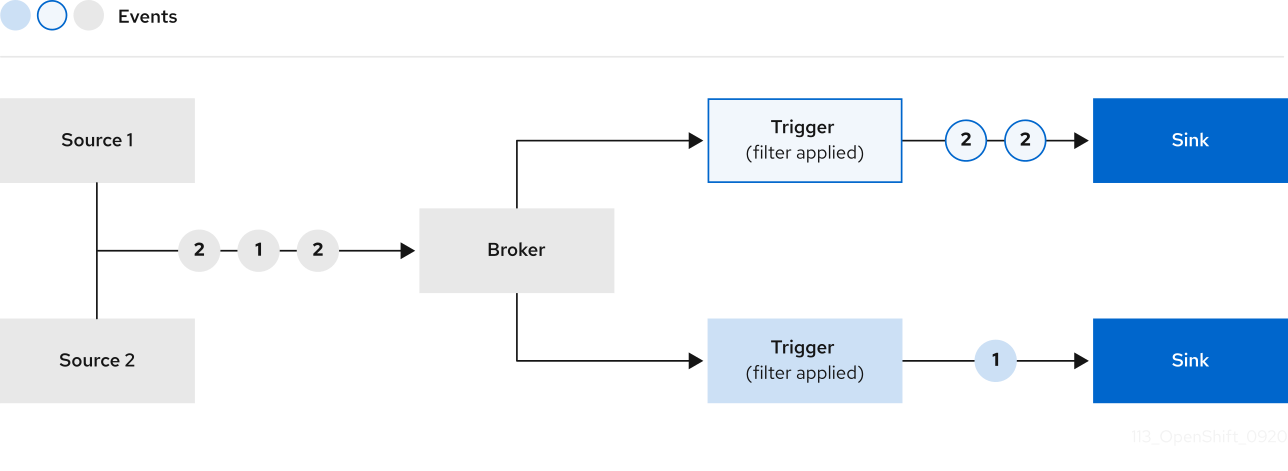

About

Source, curl, kafkaSource,
Broker
Trigger
Sink: ksvc, isvc

Install a Channel (messaging) layer

kubectl apply -f https://github.com/knative-extensions/eventing-kafka-broker/releases/download/knative-v1.18.0/eventing-kafka-controller.yaml

Expectd Output

configmap/kafka-broker-config created
configmap/kafka-channel-config created
customresourcedefinition.apiextensions.k8s.io/kafkachannels.messaging.knative.dev created
customresourcedefinition.apiextensions.k8s.io/consumers.internal.kafka.eventing.knative.dev created
customresourcedefinition.apiextensions.k8s.io/consumergroups.internal.kafka.eventing.knative.dev created
customresourcedefinition.apiextensions.k8s.io/kafkasinks.eventing.knative.dev created
customresourcedefinition.apiextensions.k8s.io/kafkasources.sources.knative.dev created
clusterrole.rbac.authorization.k8s.io/eventing-kafka-source-observer created
configmap/config-kafka-source-defaults created
configmap/config-kafka-autoscaler created
configmap/config-kafka-features created
configmap/config-kafka-leader-election created
configmap/kafka-config-logging created
configmap/config-namespaced-broker-resources created
configmap/config-tracing configured
clusterrole.rbac.authorization.k8s.io/knative-kafka-addressable-resolver created
clusterrole.rbac.authorization.k8s.io/knative-kafka-channelable-manipulator created
clusterrole.rbac.authorization.k8s.io/kafka-controller created
serviceaccount/kafka-controller created
clusterrolebinding.rbac.authorization.k8s.io/kafka-controller created
clusterrolebinding.rbac.authorization.k8s.io/kafka-controller-addressable-resolver created
deployment.apps/kafka-controller created
clusterrole.rbac.authorization.k8s.io/kafka-webhook-eventing created
serviceaccount/kafka-webhook-eventing created
clusterrolebinding.rbac.authorization.k8s.io/kafka-webhook-eventing created
mutatingwebhookconfiguration.admissionregistration.k8s.io/defaulting.webhook.kafka.eventing.knative.dev created
mutatingwebhookconfiguration.admissionregistration.k8s.io/pods.defaulting.webhook.kafka.eventing.knative.dev created
secret/kafka-webhook-eventing-certs created
validatingwebhookconfiguration.admissionregistration.k8s.io/validation.webhook.kafka.eventing.knative.dev created
deployment.apps/kafka-webhook-eventing created
service/kafka-webhook-eventing created

kubectl apply -f https://github.com/knative-extensions/eventing-kafka-broker/releases/download/knative-v1.18.0/eventing-kafka-channel.yaml

Expectd Output

configmap/config-kafka-channel-data-plane created
clusterrole.rbac.authorization.k8s.io/knative-kafka-channel-data-plane created
serviceaccount/knative-kafka-channel-data-plane created
clusterrolebinding.rbac.authorization.k8s.io/knative-kafka-channel-data-plane created
statefulset.apps/kafka-channel-dispatcher created
deployment.apps/kafka-channel-receiver created
service/kafka-channel-ingress created

Install a Broker layer

kubectl apply -f https://github.com/knative-extensions/eventing-kafka-broker/releases/download/knative-v1.18.0/eventing-kafka-broker.yaml

Expectd Output

configmap/config-kafka-broker-data-plane created
clusterrole.rbac.authorization.k8s.io/knative-kafka-broker-data-plane created
serviceaccount/knative-kafka-broker-data-plane created
clusterrolebinding.rbac.authorization.k8s.io/knative-kafka-broker-data-plane created
statefulset.apps/kafka-broker-dispatcher created
deployment.apps/kafka-broker-receiver created
service/kafka-broker-ingress created

Reference

for more information, you can check 🔗https://knative.dev/docs/eventing/brokers/broker-types/kafka-broker/

if you cannot find kafka-channel-dispatcher

please check sts

root@ay-k3s01:~# kubectl -n knative-eventing  get sts
NAME                       READY   AGE
kafka-broker-dispatcher    1/1     19m
kafka-channel-dispatcher   0/0     22m

some sts replia is 0, please check

[Optional] Install Eventing extensions

kafka sink

kubectl apply -f https://github.com/knative-extensions/eventing-kafka-broker/releases/download/knative-v1.18.0/eventing-kafka-sink.yaml

Reference

for more information, you can check 🔗https://knative.dev/docs/eventing/sinks/kafka-sink/

kafka source

kubectl apply -f https://github.com/knative-extensions/eventing-kafka-broker/releases/download/knative-v1.18.0/eventing-kafka-source.yaml

Reference

for more information, you can check 🔗https://knative.dev/docs/eventing/sources/kafka-source/
